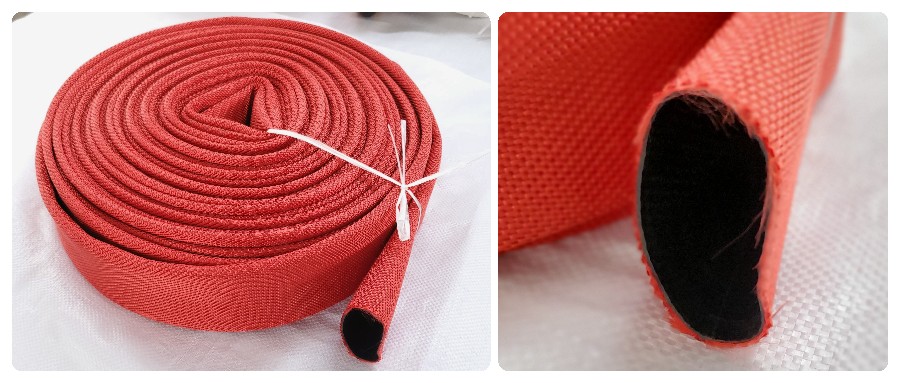

PVC lined Hose
PVC Fire Hose is usually with excellent appearance, reliable quality, good adhesion, convenient use, quick output, abrasion proof, corrosion resistance, osmosis proof and long using life. Due to its wide use range and cheaper price, and it can take place of the rubber lining fire hose in some fields, it is well admitted by the customers all around the world.
|
Application: |
Widely used for big real estate and major projects all the country, and the best choice in the field of City's planting ,irrigation agriculture, and drainage engineering, etc. |
|
Construction: |
Single jacket construction, High intensity of Polyester filament or polyester short-fiber circular woven, twill/plain weave |
|
Inner lining: |
High quality PVC |
|
Cover: |
wovean filament polyester and short fiber |
|
Temperature: |
As low as -20°C to 70°C |
|
Packaging: |
15mt , 20mt, 25mt, 30mt as standard lengths |
|
Branding: |
XF or OEM |
|
Couplings: |
Usually assembled with Storz, John Morris Coupling. |
| Nominal Size (inch/mm) | Working Pressure (Bar) | Burst Pressure (Bar) | Weight (g/m) | Wall Thickness (mm) | Tensile (kg) | Bending Radius | |
| 2” | 52 | 17 | 51 | 400 | 2.6 | 3250 | 1100 |
| 2-1/2” | 65 | 17 | 51 | 655 | 2.7 | 3500 | 1300 |
| 3" | 75 | 14 | 42 | 660 | 2.7 | 4500 | 1450 |
| 3-1/2” | 90 | 10 | 30 | 860 | 2.7 | 5250 | 1480 |
| 4" | 102 | 10 | 30 | 980 | 2.8 | 6000 | 1700 |
| 5” | 125 | 10 | 30 | 1300 | 3 | 10500 | 2100 |
| 6" | 152 | 14 | 42 | 2300 | 3.4 | 23500 | 2250 |
| 8" | 203 | 10 | 30 | 2850 | 3.4 | 16500 | 3000 |
