Alarms

Fire Alam detector

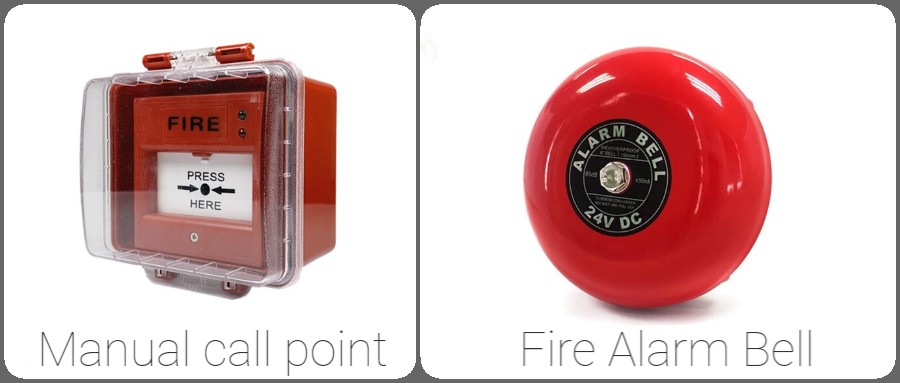

Waterproof Manual call point

SPECIFICATION:

Plastic cover

Push button panel is plastic, resettable.

LED indicator, green for working, red for alarm

Operation voltage:24VDC

Max. Current: 1A at 24VDC

Contact resistance: ≤0.2ohm

Working conditions:

Temp. range: -10℃～+50℃

Max. relative humidity: ≤93RH±2%

Dimension:87x87x51mm

Color: red, yellow, green

Fire Alarm Bell

SPECIFICATION:

Sizes: 6"/8"/10"

Diameter of white plastic base:100mm/150mm/200mm

Operating voltage: DC24V/220V

Working current:≤25mA

Sound Volume: ≥95db

Driving mode: motor

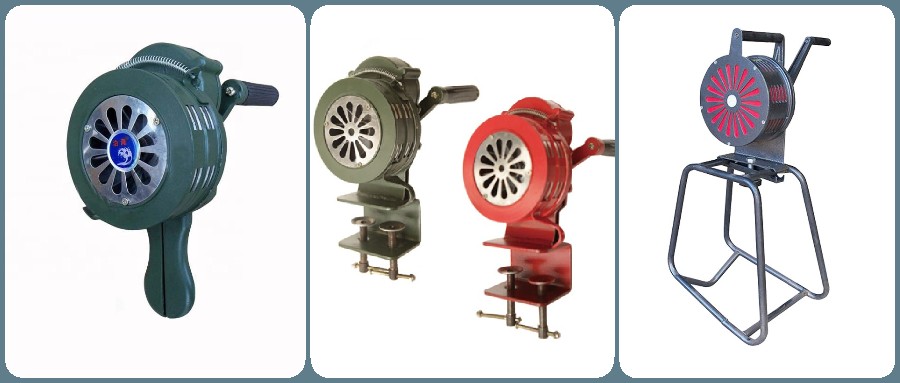

Manual Fire Alarm Risen with Motor

LK-120 is designed to provide effective warnning in applications where there is no power supply such as:

Civil defence, Camp sites, Mountain rescue, Frontier sentry and coast guard warning. As lightweight, it can be easily transported to remote locations and folds up to a small size for ease of handling.

Sound Rating:
120±2dB(A) @1M
Output Frequency:600±20Hz
Effective Range : Diameter 1.5km.
Net Weight: 9Kg
Carton Size:45x37x58CM
