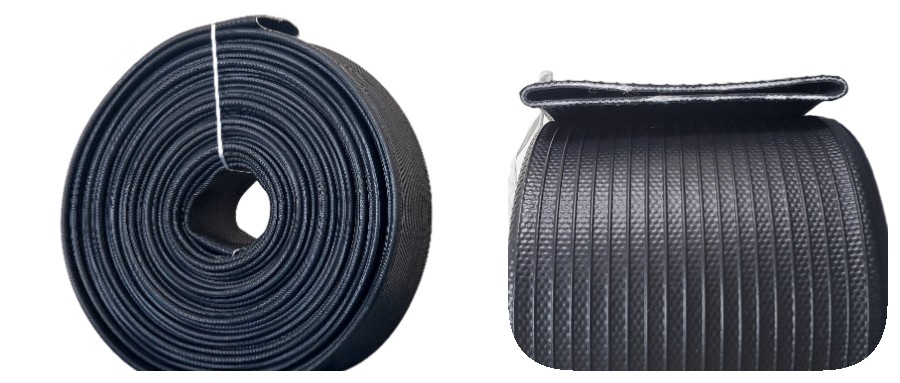

PVC/NBR layflat hose
In order to meet the market demand, xufeng hose producing a new type of high pressure lay flat hose, that is the PVC/NBR blended lay flat hose, which is the updated hose type from the traditional PVC lay flat hose. It has been made by the new technology and PVC and rubber blended material which endows it with the great advantage of safety and environment protection, none-noxious odou, wide usage and excellent pressure resistance which can be up to 30~90bar.
|
Application: |
Widely used in transferring the air,slurries chemical solutions oil, fuel and etc |
|
Construction: |
High strength circular woven polyester or nylon filament as warp and weft, PVC/NBR compound liner inside and PVC/NBR compound covered outside |
|
Inside Lining: |
PVC/NBR blended |
|
Color: |
Red as standard, other colors available |
|
Temperature: |
As low as -50°C to 80°C |
|
Packaging: |
50 , 100mt, 150mt, 200mt as standard lengths |
|
Working pressure: |
8bar to 30bar |
Specification datasheet
| Nominal Size (inch/mm) | Working Pressure (Bar) | Burst Pressure (Bar) | Weight (g/m) | Wall Thickness (mm) | Tensile (kg) | Bending Radius | |
| 2” | 52 | 17 | 51 | 400 | 2.6 | 3250 | 1100 |
| 2-1/2” | 65 | 17 | 51 | 655 | 2.7 | 3500 | 1300 |
| 3" | 75 | 14 | 42 | 660 | 2.7 | 4500 | 1450 |
| 3-1/2” | 90 | 10 | 30 | 860 | 2.7 | 5250 | 1480 |
| 4" | 102 | 10 | 30 | 980 | 2.8 | 6000 | 1700 |
| 5” | 125 | 10 | 30 | 1300 | 3 | 10500 | 2100 |
| 6" | 152 | 14 | 42 | 2300 | 3.4 | 23500 | 2250 |
| 8" | 203 | 10 | 30 | 2850 | 3.4 | 16500 | 3000 |
